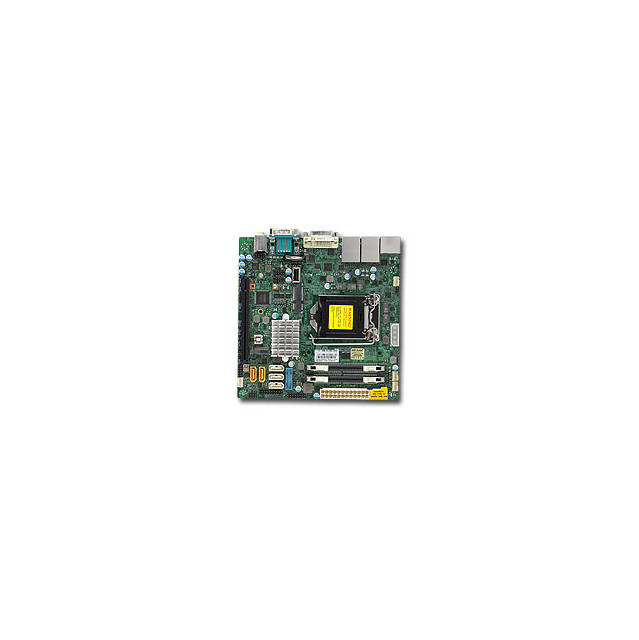

Supermicro X11SSV-Q-B LGA1151/ Intel Q170/ DDR4/ SATA3&USB3.0/ M.2/ A&2GbE/ Mini-ITX Motherboard

Original price was: $328.06.Current price is: $253.07.

Please refer to the product’s long description below for detailed specifications, terms and conditions of the item. Should you have any questions or concerns about this product, don’t hesitate to contact support. If item is qualified for free shipping it will show at checkout.

9 in stock

Fast Shipping

Timely delivery with all orders

30 Day Return

Return accepted on selected items

24/7 Help

Help is just around the corner.

Add to compare

Add to wishlist

Ask a Question

SKU: KOAH-MBD-X11SSV-Q-B Categories: Computer Accessories, Computer Components, Computers, Electronics

Description

Specifications

Mfr Part Number: X11SSV-Q-B
CPU: LGA1151
- Supports Intel 6th Core i7/ i5/ i3/ Pentium/ Celeron Processors
- Support up to 95W TDP
Chipset: Intel Q170 Express
Memory: 2x 260pin DDR4-2133/ 1866/ 1600MHz SODIMM slots, Non-ECC, Unbuffered, Max Capacity of 32GB
Slots: 1x PCI-Express 3.0 x16 Slot; 1x Mini PCI-Express Slot, Support mSATA
Storage:
- SATA: 5x SATA3 Ports, Support RAID 0, 1, 5, 10
- M.2: 1x M.2 Port, Support PCI-Express 3.0 x4 2242/ 2280
Audio: Realtek ALC888S High Definition Audio CODEC
LAN: Intel PHY i219LM + Intel i210AT Gigabit Ethernet Controllers
Ports: 6x USB 3.0 Ports (4 rear, 2 via header), 5x USB 2.0 ports (4 via headers, 1 Type A), 1x HDMI Port, 1x Display Port, 1x DVI-I Port, 2x Serial Ports, 2x RJ45 LAN Ports
Form Factor: Mini-ITX, 6.7 x 6.7 inch / 17.0 x 17.0 cm
RoHS Compliant
