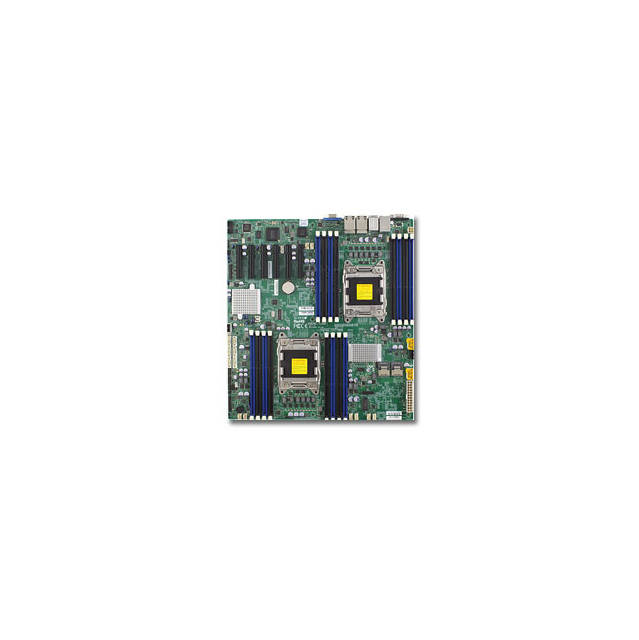

Supermicro X9DRD-7LN4F-B Dual LGA2011/ Intel C602J/ DDR3/ SATA3&SAS/ V&4GbE/ EATX Server Motherboard

Original price was: $888.63.Current price is: $685.52.

Please refer to the product’s long description below for detailed specifications, terms and conditions of the item. Should you have any questions or concerns about this product, don’t hesitate to contact support. If item is qualified for free shipping it will show at checkout.

13 in stock

Fast Shipping

Timely delivery with all orders

30 Day Return

Return accepted on selected items

24/7 Help

Help is just around the corner.

Add to compare

Add to wishlist

Ask a Question

SKU: KOAH-MBD-X9DRD-7LN4F-B Categories: Computer Accessories, Computer Components, Computers, Electronics

Description

Specifications

Mfr Part Number: X9DRD-7LN4F-B
CPU: Dual LGA2011; Supports Intel Xeon E5-2600 Series Processors; Supports up to 135W TDP; Cache up to 20MB; QPI up to 8.0 GT/s
Chipset: Intel C602J
Memory: 16x 240pin DDR3-1600/1333/1066/800 DIMM Slots, Supports up to 512GB ECC/REG Memory or up to 128GB ECC/Non-ECC Un-buffered Memory
Slots: 6x PCI-Express 3.0 x8 Slots
SATA: 4x SATA2 Ports, 2x SATA3 Ports; Support RAID 0, 1, 5, 10
SAS: 8x SAS2 Ports, Support RAID 0, 1, 10
Video: Integrated Matrox G200eW Graphics Controller
LAN: Intel i350 Quad Port Gigabit Ethernet Controller; 1x Realtek RTL8201N PHY (dedicated IPMI)
Ports: 9x USB 2.0 Ports (4 rear, 4 via headers, 1 Type A); 1x VGA Port; 2x Serial Ports (1 rear, via header); 4x RJ45 LAN Ports; 1x RJ45 Dedicated IPMI LAN Port
Form Factor: Extended ATX, 12.0 x 13.0 inch / 30.5 x 33.0 cm
RoHS Compliant
