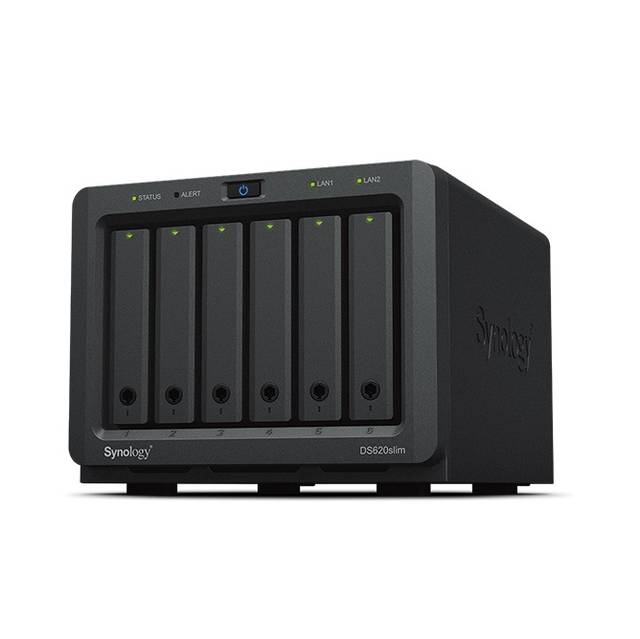

Synology DiskStation DS620SLIM 6-bay 2.5” NAS (Secure digital content with a modern look)

Specifications

• Mfr Part Number: DS620SLIM
• CPU:
  • CPU Model: Intel Celeron J3355
  • CPU Architecture: 64-bit
  • CPU Frequency: DualCore 2 burst up to 2.5 GHz
  • Hardware Encryption Engine (AES-NI): Y
  • Hardware Transcoding Engine: H.265 (HEVC), MPEG-4 Part 2, MPEG-2, VC-1; maximum resolution: 4K (3840 x 2160)); maximum frame rate per second (FPS): 30
• Memory:
  • System Memory: 2 GB DDR3L
  • Memory Module Pre-installed: 2 GB (2 GB x 1)
  • Total Memory Slots: 2
  • Memory Expandable up to: 6 GB (2 GB + 4 GB)
• Storage:
  • Drive Bays: 6
  • Compatible Drive Type* (See all supported drives): 2.5″ SATA HDD / 2.5″ SATA SSD
  • Maximum Internal Raw Capacity: 30 TB (5 TB drive x 6) (Capacity may vary by RAID types)
  • Maximum Single Volume Size: 108 TB
  • Hot Swappable Drive: Y
• External Ports:
  • RJ-45 1GbE LAN Port: 2 (with Link Aggregation / Failover support)
  • USB 3.0 Port: 2
• File System:
  • Internal Drives: Btrfs; EXT4
  • External Drives: Btrfs; EXT4; EXT3; FAT; NTFS; HFS+; exFAT*
  • Notes exFAT Access is purchased separately in Package Center.
• Appearance:
  • Size (Height x Width x Depth): 121 mm x 151 mm x 175 mm
  • Weight: 1.4 kg
• Others:
  • System Fan: 80 mm x 80 mm x 1 pcs
  • Fan Speed Mode: Full-Speed Mode; Cool Mode; Quiet Mode
  • Easy Replacement System Fan: Y
  • Brightness Adjustable Front LED Indicators: Y
  • Power Recovery: Y
  • Noise Level: 20.5 dB(A)
  • Scheduled Power On/Off: Y
  • Wake on LAN/WAN: Y
  • Power Supply Unit / Adapter: 65W
  • AC Input Power Voltage: 100V to 240V AC
  • Power Frequency: 50/60Hz, Single Phase
  • Power Consumption: 34.88 W (Access); 7.59 W (HDD Hibernation)
  • British Thermal Unit: 119.1 BTU/hr (Access); 25.92 BTU/hr (HDD Hibernation)
• Temperature:
  • Operating Temperature: 5°C to 40°C (40°F to 104°F)
  • Storage Temperature: -20°C to 60°C (-5°F to 140°F)
  • Relative Humidity: 5% to 95% RH
  • Certification: EAC; VCCI; RCM; FCC; CE; BSMI
• Storage Management:
  • Maximum Internal Volume Number: 64
  • Maximum iSCSI Target Number: 128
  • Maximum iSCSI LUN: 256
  • iSCSI LUN Clone/Snapshot, Windows ODX: Y
  • SSD TRIM: Y
  • Supported RAID Type: Synology Hybrid RAID/Basic/JBOD/RAID 0/RAID 1/RAID 5/RAID 6/RAID 10
  • RAID Migration: Basic to RAID 1/Basic to RAID 5/RAID 1 to RAID 5/RAID 5 to RAID 6
  • Volume Expansion with Larger HDDs: Synology Hybrid RAID/RAID 1/RAID 5/RAID 6/RAID 10
  • Volume Expansion by Adding a HDD: Synology Hybrid RAID/JBOD/RAID 5/RAID 6
  • Global Hot Spare Supported RAID Type: Synology Hybrid RAID/RAID 1/RAID 5/RAID 6/RAID 10
• File Services:
  • File Protocol: CIFS/AFP/NFS/FTP/WebDAV
  • Maximum Concurrent CIFS/AFP/FTP Connections: 500
  • Maximum Concurrent CIFS/AFP/FTP Connections (with RAM expansion): 1,500
  • Windows Access Control List (ACL) Integration: Y
  • NFS Kerberos Authentication: Y
• Account & Shared Folder:
  • Maximum Local User Accounts: 2,048
  • Maximum Local Groups: 256
  • Maximum Shared Folder: 256
  • Maximum Shared Folder Sync Tasks: 8
• Synology High Availability: Y
• Log Center: Y
  • Syslog Events per Second: 400
• Virtualization:
  • VMware vSphere 6 with VAAI: Y
  • Windows Server 2016: Y
  • Citrix Ready: Y
  • OpenStack: Y
• Antivirus by McAfee (Trial): Y
• Central Management System: Y
• Synology Chat: Y
  • Maximum Users: 1,000
• Cloud Station Server: Y
  • Recommended Number of Hosted Files: 500,000
  • Recommended Number of Concurrent Sync Clients: 500 (the number of connections that can be maintained when the recommended number of hosted files was reached)
• Environment: RoHS Compliant
• Packaging Content:
  • Main Unit X 1
  • AC Power Adapter X 1
  • AC Power Cord X 1
  • RJ-45 LAN Cable X 2
  • Quick Installation Guide X 1
• Optional Accessories:
  • Surveillance Device License Pack
  • D3NS1866L-4G DDR3 non-ECC SO-DIMM
  • VS360HD
  • VS960HD
