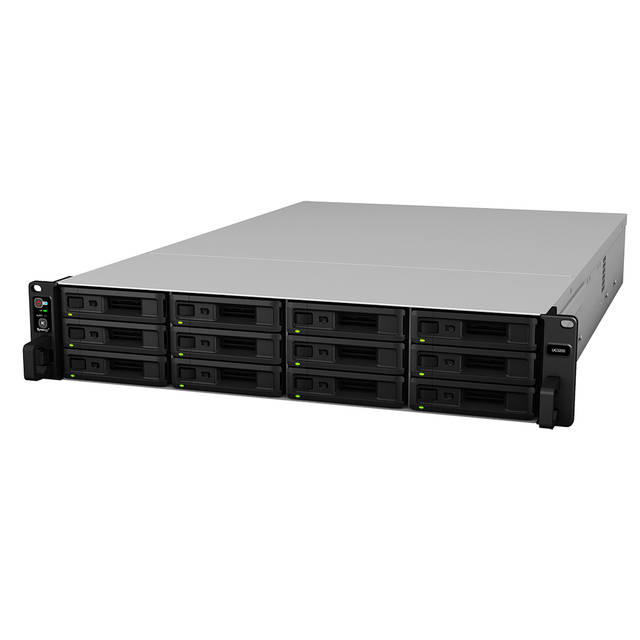

Synology UC3200 Unified Controller Active-Active IP SAN for MissionCritical Services

Specifications

• Mfr Part Number: UC3200
• CPU:
  • CPU Model: Intel Xeon D-1521
  • CPU Architecture: 64-bit
  • CPU Frequency: Quad Core 2.4 (base) / 2.7 (turbo) GHz
  • Hardware Encryption Engine (AES-NI): Y
• Memory:
  • System Memory: 8 GB DDR4 ECC RDIMM
  • Memory Module Pre-installed: 8 GB (8 GB x 1)
  • Total Memory Slots: 4
  • Memory Expandable up to: 64 GB (16 GB x 4)
• Storage:
  • Drive Bays: 12
  • Maximum Drive Bays with Expansion Unit: 36 (RXD1219sas)
  • Compatible Drive Type: 3.5″ SAS HDD/ 2.5″ SAS HDD/ 2.5″ SAS SSD
  • Maximum Internal Raw Capacity: 192 TB (16 TB drive x 12) (Capacity may vary by RAID types)
  • Maximum Raw Capacity with Expansion Units: 576 TB (16 TB drive x 36) (Capacity may vary by RAID types)
  • Maximum Single Volume Size: 108 TB
  • Hot Swappable Drive: Y
• External Ports:
  • RJ-45 1GbE LAN Port: 2 (with Link Aggregation / Failover support)
  • RJ-45 10GbE LAN Port: 1 (with Link Aggregation / Failover support)
• PCIe:
  • PCIe Expansion: 1 x Gen3 x8 slots (x8 link)
  • Add-In-Card Support: PCIe Network Interface Card
• File System:
  • Internal Drives: Btrfs
• Appearance:
  • Size (Height x Width x Depth): 88 mm x 482 mm x 724 mm
  • Weight: 19.7 kg
  • Rack Installation Support: 4-post 19″ rack (Synology Rail Kit – RKS1317)
  • Notes: The rail kit is sold separately
• Others:
  • System Fan: 60 mm x 60 mm x 2 pcs
  • Fan Speed Mode: Full-Speed Mode; Cool Mode; Quiet Mode
  • Easy Replacement System Fan: Y
  • Power Recovery: Y
  • Noise Level: 51.3 dB(A)
  • Power Supply Unit / Adapter: 500W
  • Redundant Power Supply: Y
  • AC Input Power Voltage: 100V to 240V AC
  • Power Frequency: 50/60Hz, Single Phase
  • Power Consumption: 417.48 W (Access); 316.47 W (Idle); 274.38W (HDD Hibernation)
  • British Thermal Unit: 1425.45 BTU/hr (Access), 1080.56 BTU/hr (Idle), 936.85 BTU/hr (HDD Hibernation)
• Temperature:
  • Operating Temperature: 0°C to 35°C (32°F to 95°F)
  • Storage Temperature: -20°C to 60°C (-5°F to 140°F)
  • Relative Humidity: 5% to 95% RH
  • Certification: EAC/VCCI/CCC/RCM/KC/FCC/CE/BSMI
• Storage Management:
  • Maximum Internal Volume Number: 32
  • Maximum iSCSI Target Number:128
  • Maximum iSCSI LUN: 128
  • Maximum Number of Snapshots per Advanced LUN: 256
  • SSD Read / Write Cache (White Paper): Y
  • SSD TRIM: Y
  • RAID Group: Y
  • Supported RAID Type: RAID F1/Basic/JBOD/RAID 0/RAID 1/RAID 5/RAID 6/RAID 10
  • RAID Migration: Basic to RAID 1/Basic to RAID 5/RAID 1 to RAID 5
  • Volume Expansion with Larger HDDs: RAID F1/RAID 1/RAID 5/RAID 6/RAID 10
  • Volume Expansion by Adding a HDD: JBOD/RAID F1/JBOD/RAID 5/RAID 6
  • Global Hot Spare Supported RAID Type: RAID F1/RAID 1/RAID 5/RAID 6/RAID 10
• Account & Shared Folder:
  • Maximum Local User Accounts: 65
• Virtualization:
  • VMware vSphere 6 with VAAI: Y
  • Windows Server 2016: Y
  • Windows Server 2019: Y
  • Citrix Ready: Y
  • OpenStack: Y
• Environment: RoHS Compliant
• Packaging Content:
  • Main Unit X 1
  • Accessory Pack X 1
  • AC Power Cord X 2
  • Quick Installation Guide X 1
