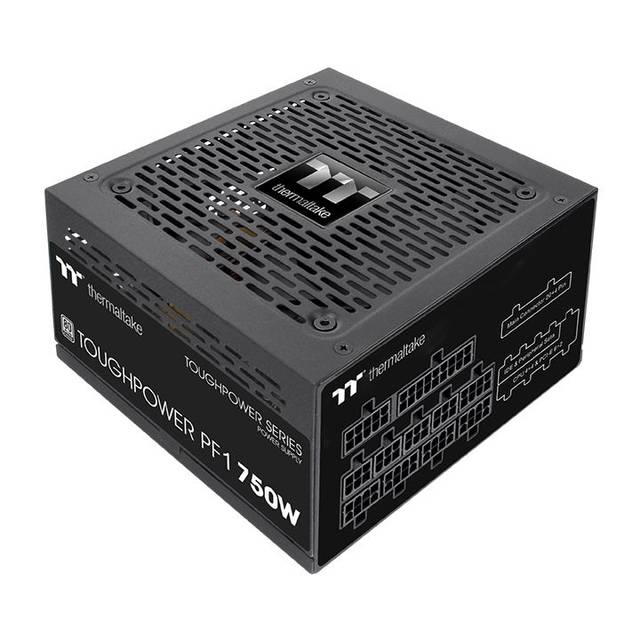

Thermaltake PS-TPD-0750FNFAPU-1 Toughpower PF1 750W TT Premium 80 PLUS Platinum Power Supply w/ Active PFC (Black)

Specifications

• Mfr Part Number: PS-TPD-0750FNFAPU-1
• Features:
  • New Board Technology Offering Single Side SMD
  • Compact Design with 140mm Depth
  • Ultra Quiet 120mm Hydraulic Bearing Fan
  • Smart Zero Fan
  • ＜30mV Low Ripple Noise
  • Extremely Strict Voltage Regulation ＜±2%
  • Fully Modular Low-Profile Flat Cable
  • Premium Japanese 105°C/221°F Capacitors
  • High Amperage Single +12V Rail
  • 80 PLUS Platinum Certified and Intel C6/C7 States Ready
• Watts: 750W
• Model: TTP-750AH2FKP
• Max. Output Capacity: 750W
• Peak Output Capacity: 900W
• Color: Black
• PFC (Power Factor Correction): Active PFC
• Power Good Signal: 100-500 msec
• Hold Up Time: > 16msec at 100% of full load
• Input Current: 10A
• Input Frequency Range: 50Hz – 60Hz
• Input Voltage: 100V – 240V
• Openating Temperature: 5°C to + 50°C
• Openation Humidity: 20% to 85%, non-condensing
• Storage Temperature: -40°C to + 55°C
• Storage Humidity: 10% to 95%, non-condensing
• Cooling System: 12cm hydraulic bearing fan
• Efficiency: Meet 80 PLUS Platinum at 115Vac input.
• MTBF: 120,000 hrs minimum
• Output: +3.3V @ 20A; +5V @ 20A; +12V @ 62A; -12V @ 0.3A; +5VSB @ 2.5A
• Connectors:
  • 1 x 24pin Main Power Connector
  • 2 x ATX12V 4+4pin ATX 12V Connectors
  • 9 x 5-pin SATA Connectors
  • 4 x 6+2-pin PCI-Express Connectors
  • 4 x 4-pin Peripheral Connectors
  • 1 x Floppy Connector
• Safety Approval: OVP/OCP/CE/UL/TÃœV/FCC/BSMI/CCC/ EAC
• Dimension: 150mm(W) x 86mm(H) x 140mm(D)
