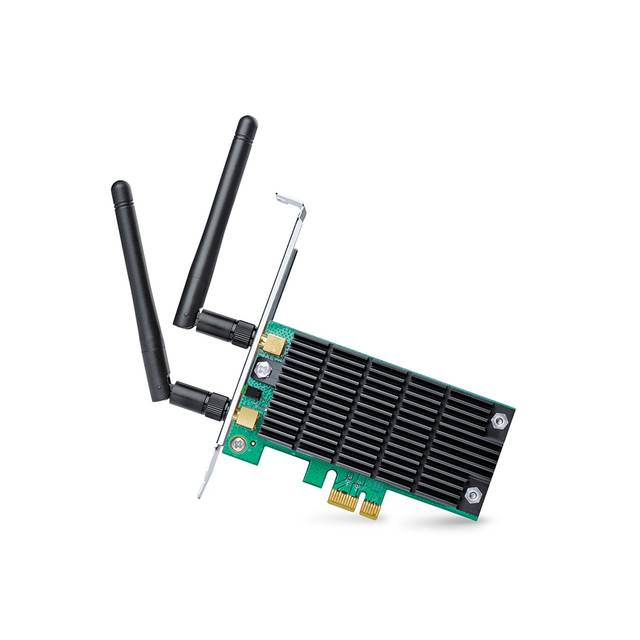

TP-Link ARCHER T6E AC1300 Wireless Dual Band PCI Express Adapter

Specifications

• Mfr Part Number: ARCHER T6E
• Features:
  • Easy Installation – Upgrade your desktop system easily by plugging the Archer T6E Wi-Fi adapter into an available PCI-E slot
  • Hi-Speed Wi-Fi – Up to 1300Mbps Wi-Fi speeds (867Mbps on 5GHz band or 400Mpbs on 2.4GHz band)
  • 802.11ac Dual Band – 3 times faster than the 802.11n standard, perfect for hi-intensity network usage
  • Backward Compatibility – With support for 802.11 a/b/g/n standards
  • Broad Wireless Range – 2 external antennas ensure a greater range of Wi-Fi connection and stability
• Wireless Standards: IEEE 802.11ac/n/a 5GHz, IEEE 802.11b/g/n 2.4GHz
• Frequency: 2.4 – 5.0GHz
• Interface: PCI Express
• Antenna Type: 2 Dual Band Detachable Antennas
• Signal Rate: 867Mbps at 5GHz, 400Mbps at 2.4GHz
• Reception Sensitivity:
  • 5GH:
    • 11a: -68dBm
    • 11n HT20: -64dBm
    • 11n HT40: -61dBm
    • 11ac HT20: -59dBm
    • 11ac HT40: -54dBm
    • 11ac HT80: -51dBm
  • 2.4GHz:
    • 11b: -76dBm
    • 11g: -68dBm
    • 11n HT20: -64dBm
    • 11n HT40: -61dBm
• ​Transmit Power:
  • 5GHz: <23dBm (EIRP)
  • 2.4GHz: <20dBm (EIRP)
• Wireless Modes: Ad-Hoc / Infrastructure mode
• Wireless Security: Support 64/128 bit WEP, WPA-PSK/WPA2-PSK, 802.1x
• Modulation Technology: DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM
• System Requirements: Windows 10 (32/64bits), Windows 8.1 (32/64bits), Windows 8 (32/64bits), Windows 7 (32/64bits), Windows XP(32/64bits)
• Dimensions(WxDxH): 4.80 x 4.50 x 0.85 inch / 120.8 x 115.2 x 21.5 mm
