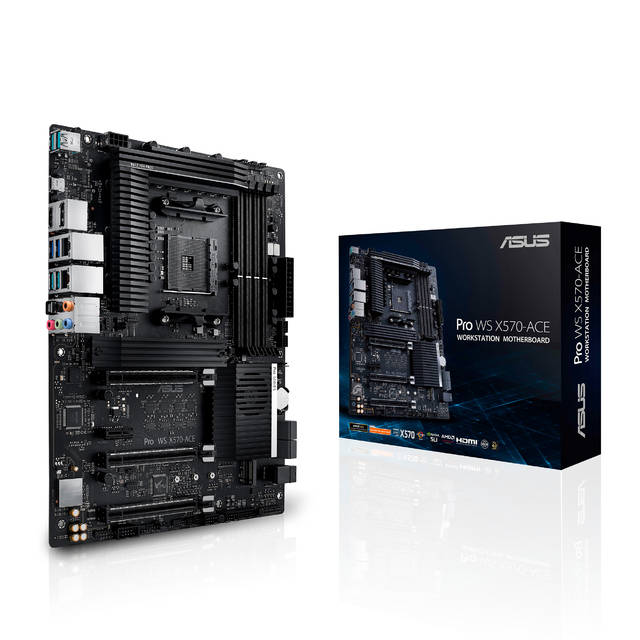

Asus PRO WS X570-ACE Socket AM4/ AMD X570/ DDR4/ 3-Way CrossFireX & 2-Way SLI/ SATA3&USB3.2/ M.2/ A&V&GbE/ ATX Motherboard

Specifications

• Mfr Part Number: PRO WS X570-ACE
• CPU: AMD AM4 Socket for 3rd and 2nd  Gen AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
• Chipset: AMD X570
• Memory:
  • 3rd Gen AMD Ryzen Processors
    – 4 x DIMM, Max. 128GB, DDR4 MHz Un-buffered Memory
  • 2nd Gen AMD Ryzen Processors
    – 4 x DIMM, Max. 128GB, DDR4 MHz Un-buffered Memory
  • 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
    – 4 x DIMM, Max. 128GB, DDR4 MHz Un-buffered Memory
    – Dual Channel Memory Architecture
    – ECC Memory (ECC mode) support varies by CPU
• Expansion Slots:
  • 3rd Gen AMD Ryzen Processors
    – 2 x PCI Express 4.0 x16 slots (single at x16 or dual at x8/x8 mode)
  • 2nd Gen AMD Ryzen Processors
    – 2 x PCI Express 3.0 x16 slots (single at x16 or dual at x8/x8 mode)
  • 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
    – 1 x PCI Express 3.0 x 16 slot (x8 mode)
  • AMD X570 chipset
    – 1 x PCI Express 4.0 x 16 slots (max. at x8 mode)
    – 1 x PCI Express 4.0 x1 slot
• Graphics:
  • Integrated Graphics in the AMD Ryzen with Radeon Vega Graphics Processors
    Multi-VGA output support: DisplayPort/HDMI ports
    Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz
    Supports HDMI 2.0b with maximum resolution of 4096 x 2160 @ 60 Hz
• Multi-GPU Support:
  • 3rd and 2nd Gen AMD Ryzen Processors
    – Supports NVIDIA 2-Way SLI Technology
    – Supports AMD 3-Way CrossFireX Technology
  • 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
    – Supports AMD 2-Way CrossFireX Technology
• Storage:
  • 3rd Gen AMD Ryzen Processors
    – M.2_1 socket 3 with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x 4 and SATA modes) storage devices support
  • 2nd Gen AMD Ryzen / 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
    – M.2_1 socket 3 with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x 4 and SATA modes) storage devices support
  • AMD X570 Chipset:
    – M.2_2 socket 3* with M Key, Type 2242/2260/2280/(PCIE 4.0 x 2) storage devices support
    – 4 x Serial ATA 6.0 Gb/s connectors with RAID 0, RAID 1 and RAID 10 support
    – 1 x U.2 connector (supports U.2 NVMe device)
    *The M.2_2 socket shares PCIe lanes with PCIeX1_1; when PCIeX1_1 is occupied, M.2_2 only can only run at PCIE 4.0 x 1.
• LAN:
  • Realtek RTL8117
  • Intel I211-AT Gigabit LAN
• Audio:
  • Realtek S1220A 8-channel high definition audio CODEC featuring Crystal Sound 3
    – Separate layer for left and right track, ensuring both sound deliver equal quality
    – Impedance sense for front and rear headphone outputs
    – Audio shielding ensures precise analog/digital separation and greatly reduced multi-lateral interference
    – EMI protection cover to prevent electrical noise to affect the amplifier quality
    – Premium Japan-made audio capacitors provides warm, natural, and immersive sound with exceptional clarity and fidelity
     – High quality 120dB SNR stereo playback output (Line-out@back) & 113dB SNR input (Line-in) support
    – Supports up to 32-Bit/192kHz playback*
    – Supports jack-detection, multi-streaming, front panel jack-retasking (MIC)
    – Optical S/PDIF out port at back I/O
    * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
• USB:
  • 3rd Gen AMD Ryzen Processors
    – 3 x USB 3.2 Gen1 ports (2 ports at back panel[blue], 1 port at mid-board)
  • 2nd Gen AMD Ryzen / 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
    – 3 x USB 3.2 Gen1 ports (2 ports at back panel[blue], 1 port at mid-board)
  • AMD X570 chipset
    – 5 x USB 3.2 Gen2 ports (5 ports at back panel, 4 type A+ 1 type C)
    – 3 x USB 3.2 Gen1 ports (3 ports at mid-board)
    – 4 x USB 2.0 ports at mid-board
• ASUS Quiet Thermal Solution:
  • Quiet Thermal Design:
    – ASUS Fan Xpert 4
    – Chipset & MOS Heat-sink with heatpipe, M.2 Heat-sink, and built-in PCH fan solution
• ASUS Exclusive Overclocking Features:
  • Precision Tweaker 2:
    – vVDDCR CPU: Adjustable CPU voltage at 0.00625V increment
    – vVDDCR SOC: Adjustable CPU/NB voltage at 0.00625V increment
    – vDRAM Bus: Adjustable DRAM voltage at 0.005V increment
  • Overclocking Protection:
     – ASUS C.P.R.(CPU Parameter Recall)
• Back I/O Ports:
  • 1 x DisplayPort
  • 1 x HDMI port
  • 1 x Intel LAN (RJ45) port
  • 1 x Realtek LAN (RJ45) port
  • 5 x USB 3.2 Gen2 ports (teal blue, 4 x Type-A, 1 x Type-C)
  • 2 x USB 3.2 Gen1 ports (Type-A)
  • 1 x Optical S/PDIF out
  • 5 x Audio Jacks(Line in,Front Speaker Out,Mic in,Center/Subwoofer,Rear Speaker Out)
• Internal connectors:
  • 2 x USB 3.2 Gen1 connector supporting additional 4 USB ports
  • 2 x USB 2.0 connectors support additional 4 USB ports
  • 1 x M.2 Socket 3 for M Key, type 2242/2260/2280/22110 devices support, (both SATA & PCIE mode)
  • 1 x M.2 Socket 3 for M Key, type 2242/2260/2280 devices support, (PCIE mode)
  • 4 x SATA 6.0Gb/s connectors (gray)
  • 1 x 4-pin CPU fan connector
  • 1 x 4-pin CPU_OPT fan connector
  • 1 x 4-pin AIO_PUMP connector
  • 3 x 4-pin chassis fan connectors
  • 1 x Front panel audio connector (AAFP)
  • 1 x COM connector
  • 1 x 24-pin EATX Power connector
  • 1 x 8-pin EATX 12V Power connector
  • 1 x System Panel
  • 1 x Node connector
  • 1 x Clear CMOS header
  • 1 x RTL8117 reset password header
  • 1 x T_Sensor Header
  • 1 x Debug Header
• BIOS: 256 Mb Flash ROM, UEFI AMI BIOS, PnP, SMBIOS 3.2, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, F9 Search and ASUS DRAM SPD (Serial Presence Detect) memory information
• Manageability: WOL by PME, PXE
• Weight:
  • Motherboard only – 1.023 kg
  • Full package – 1.358 kg
• Accessories:
  • 4 x Serial ATA 6.0Gb/s cables
  • 1 x ASUS Q-Shield
  • 1 x Support DVD
  • 1 x M.2 screw package
  • 1 x VGA holder
  • 1 x user’s manual
• Support DVD:
  • Drivers
  • ASUS Utilities
  • EZ Update
  • Anti-virus software (OEM version)
• Operating System: Windows 10 64-bit; RHEL 7.4 or later; Ubuntu
• Form Factor: ATX Form Factor, 12 inch x 9.6 inch (30.5cm x 24.4cm)
