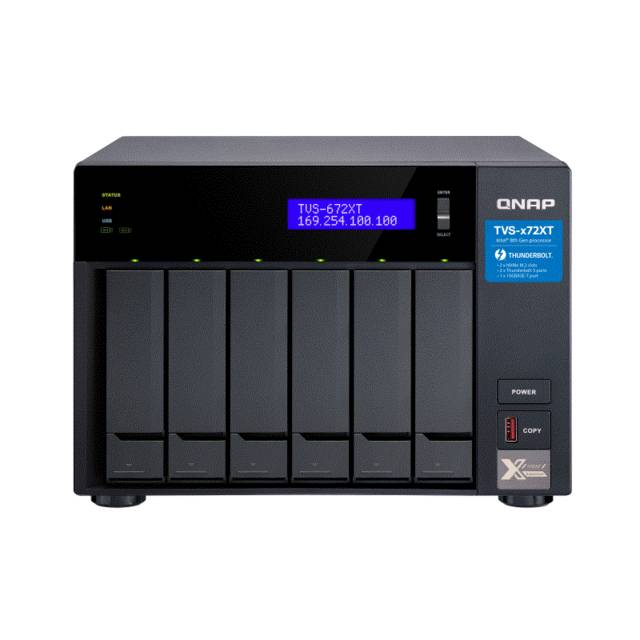

QNAP TVS-672XT-I3-8G-US Intel Core i3-8100T 4 3.1GHz/ 8GB RAM/ 6-Bay Desktop NAS for SMBs

Specifications

• Mfr Part Number: TVS-672XT-I3-8G-US
• Hardware:
• • CPU: Intel Coreâ„¢ i3-8100T 4-core 3.1 GHz Processor
  • CPU Architecture: 64-bit x86
  • Graphic Processors: Intel® UHD Graphics 630
  • System Memory: 8 GB SODIMM DDR4 (2 x 4 GB)
  • Maximum Memory：32 GB ( 2 x 16 GB)
  • Memory Slot：2 x SO-DIMM DDR4
  • Flash Memory: 5GB (Dual boot OS protection)
  • Drive Bay：6 x 3.5-inch SATA 6Gb/s, 3Gb/s
  • Drive Compatibility; 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives
  • M.2 SSD Slot: 2 x M.2 2280 PCIe Gen3 x2 slots
  • Gigabit Ethernet Port (RJ45)： 2
  • 10 Gigabit Ethernet Port：1 x 10GBASE-T (10G/5G/2.5G/1G/100M)
  • Thunderbolt Port: 2 (Thunderboltâ„¢ 3)
  • PCIe Slot：2 Slot 1: PCIe Gen 3 x16 (CPU) Slot 2: PCIe Gen 3 x4 (PCH)
  • USB 3.0 port： 1
  • USB 3.1 Gen 2 (10Gbps) Port 2 x Type-C USB 3.1 Gen2 5V/3A 10Gbpsï¼› 2 x Type-A USB 3.1 Gen2 5V/1A 10Gbps
  • IR Sensor (QNAP RM-IR004 & MCE)
  • HDMI Output: 1, HDMI 2.0 (up to 3840 x 2160 @ 60Hz)
  • Audio Input: 1 x 3.5mm microphone input jacks
  • Audio Output: 1 x built-in speaker, 1 x 3.5mm line out jack (for amplifiers or speakers)
  • Form Factor: Tower
  • LED Indicators: HDD 1-6, Status, LAN, USB port, M.2 port
  • Buttons: Power, Reset, USB Copy
• Networking:
  • TCP/IP (IPv4 & IPv6: Dual Stack)
  • Jumbo frame
  • Port trunking（Link aggregation)
    • failover
    • Load balancing
  • DHCP client, DHCP server
  • RADVD
  • USB Wi-Fi Adapter Support
• Security:
  • Network access protection with auto-blocking: SSH, Telnet, HTTP(S), FTP, CIFS/SMB, AFP
  • Host access control for shared folders (CIFS/SMB)
  • AES 256-bit folder-based and volume-based encryptions which are validated by FIPS 140-2 CAVP (Cryptographic Algorithm Validation Program)
  • 256-bit external drive encryption (AES)
  • Importing of SSL certificates from Let’s Encrypt
  • Instant alerts through email, SMS, push service, audio, and LCD panel Note: Voice alerts are only available for models that have built-in speakers.
  • 2-step verfication
• Storage Management:
  • Supported RAID types
    • 6-bay: RAID 0, 1, 5, 6, 10, 50, JBOD, Single
  • RAID Hot Spare and Global Hot Spare
  • RAID Rebuild Speed Customization
  • Online RAID capacity expansion
  • Online RAID level migration
  • SSD RAID Over-provisioning
  • SSD RAID Performance evaluation (with SSD Profiling Tool)
  • Bitmap support
  • Disk auto S.M.A.R.T. data migration
  • Disk bad block scan and S.M.A.R.T test
  • Disk bad block recovery
  • Disk secure data erase
  • IronWolf Health Management
  • Storage pools
  • Qtierâ„¢ Data Tiering Technology
    • Automatic or scheduled data tiering
    • IO-aware auto tiering
    • Shared folder tiering on demand
  • Flexible volumes and LUNs with thin provisioning and space reclaiming
  • Online volume expansion
  • Volume type convert
  • Volume shrink
  • Storage space utilization
  • Snapshots
    • Volume and LUN snapshots
    • Snapshot Dashboard
    • Snapshot Manager
    • Snapshot local restore and revert
    • Snapshot Clone
    • Snapshot Replica and Snapshot Vault
    • Snapshot remote restore and revert Unified
    • Snapshot Directory Support for Windows Previous Versions (CIFS/SMB)
    • Snapshot Agent for Microsoft Windows and VMware vSphere
  • Storage expansion using QNAP expansion units
  • JBOD enclosure roaming
  • SSD read-only and read-write cache
  • SSD write-only cache
  • Note: SSD Cache support Single, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10 configuration. The maximum cache size depends on installed memory.
• File System:
  • Internal hard drive (EXT4)
  • External hard drive (EXT3, EXT4, NTFS, FAT32, HFS+, and exFAT) Note: To use exFat you must purchase an exFAT driver license from License Center.
• Form Factor: Tower
• Fan: System fan: 1 x 120mm, 12VDC CPU fan: 2 x 60mm blower fan
• Power Supply Unit: 250W, 100-240V
• Dimensions (WxDxH): 10.41 x 11.01 x 7.41 inch
• Weight: 14.45 lbs (Net)
