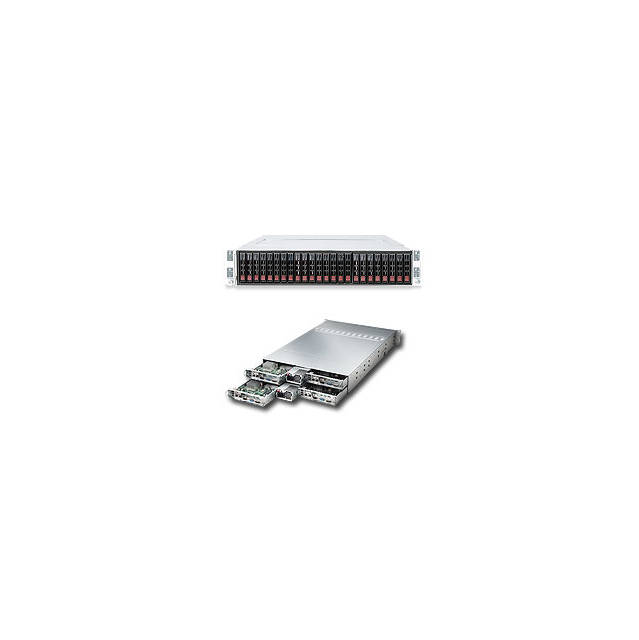

Supermicro SuperServer SYS-2026TT-HTRF Four Node Dual LGA1366 1400W 2U Rackmount Server Barebone System (Black)

Specifications

• Mfr Part Number: SYS-2026TT-HTRF
• Motherboard: 4x Super X8DTT-HF+
• Processors per Node: Dual LGA1366
  • Support 64-bit Intel Xeon X5600/E5600/L5600 Series (Westmere) processors, Support 40W – 95W TDP
  • Support 64-bit Intel Xeon X5500/E5500/L5500 Series (Nehalem-EP) processors, Support 38W – 95W TDP
  • QPI Upto 6.4 GT/s
• Chipset per Node: North Bridge Intel 5500 (Tylersburg) & South Bridge ICH10R + IOH-36D
• Memory per Node: 12x 240pin DDR3-1333/1066/800 DIMMs, Supports up to 192GB ECC/REG Memory or up to48GB ECC/Non ECC Unbuffered Memory
• Slots per Node: 1x PCI-Express x16 slot (Low Profile)
• SATA per Node: 6x SATA2 Ports, Support RAID 0, 1, 5, 10
• Video per Node: Matrox G200eW Graphics
• LAN per Node: Dual Intel 82574L Gigabit Ethernet Controllers; 1x Realtek RTL8201N PHY (dedicated IPMI)
• Drive Bays per Node: 6x 2.5″ SATA Hot-swap drive bays
• Backplane per Node: 2U Hard drive Backplane
• Ports per Node: 4x USB 2.0 Ports(2 rear, 2 by header), 1x VGA Port, 1x Serial Port, 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
• Form Factor: 2U Rackmount
• Power Supply: 1400W 80 PLUS Gold Certified high-efficiency (1+1) redundant power supply with PMBus
• System Cooling: 4x Cooling Fans
• Front Panel:
  • Buttons: Power On/Off, UID
  • LEDs: Power, Network Activity, System Overheat/fan fail/power fail, UID
• Color: Black
• Dimensions (WxDxH): 17.2 x 28.5 x 3.5 inch / 437.0 x 724.0 x 89.0 mm
• Gross Weight: 85.0 lbs / 38.6 kg
• RoHS Compliant
