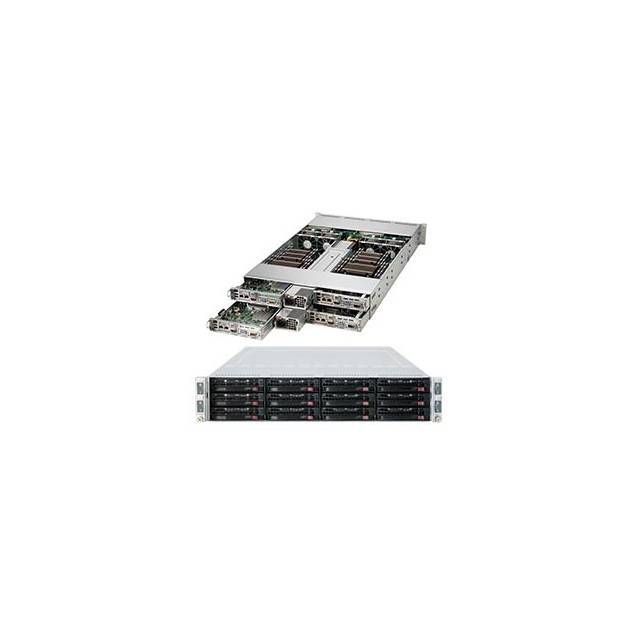

Supermicro SuperServer SYS-6027TR-HTRF+ Dual LGA2011 1620W 2U Rackmount Server Barebone System (Black)

Specifications

• Mfr Part Number: SYS-6027TR-HTRF+
• Motherboard: Super X9DRT-HF+
• Processor/Cache:
  • CPU: Dual Socket R (LGA 2011); Intel Xeon processor E5-2600 and E5-2600 v2 family (up to 135W TDP )
  • Note: BIOS version 3.0 or above is required
  • Cache: Up to 30MB
  • System Bus: QPI up to 8 GT/s
• System Memory:​
  • Memory Capacity:
    – 16x 240-pin DDR3 DIMM slots
    – Up to 1TB DDR3 ECC LRDIMM
    – Up to 512GB DDR3 ECC Registered memory (RDIMM)
  • Memory Type: 1866/1600/1333/1066/800MHz ECC DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
  • DIMM Sizes: 32GB, 16GB, 8GB, 4GB, 2GB, 1GB
  • Memory Voltage: 1.5 V, 1.35 V
  • Error Detection:
    – Corrects single-bit errors
    – Detects double-bit errors (using ECC memory)
• On-Board Devices:​
  • Chipset: Intel C602 Chipset
  • SATA: SATA 2.0 & 3.0 with RAID 0, 1, 5, 10
  • IPMI:
    - Support for Intelligent Platform Management Interface v.2.0
    – IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    – Nuvoton WPCM450 BMC
  • Network Controllers:
    – Intel i350 Dual Port Gigabit Ethernet
    – Virtual Machine Device Queues reduce I/O overhead
    – Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
    – 1x Realtek RTL8201N PHY (dedicated IPMI)
  • Graphics: Matrox G200eW
• Input/ Output:​
  • Serial ATA:
    – 2x SATA 3.0 ports (6Gbps)
    – 1x SATA 2.0 ports (3Gbps)
  • LAN:
    – 2x RJ45 Gigabit Ethernet LAN ports
    – 1x RJ45 Dedicated IPMI LAN port
  • USB: 5x USB 2.0 ports total (2 rear + 2 via header + 1 Type A)
  • VGA: 1x VGA port
  • Serial Port / Header: 1x Fast UART 16550 port
• Chassis:
  • ​Form Factor: 2U Rackmount
  • Model: CSE-827HQ-R1620MB
• Front Panel:
  • Buttons:
    – Power On/Off button
    - System Reset button
    - UID button
  • LEDs:
    – Power status LED
    – HDD activity LED
    – 2x Network activity LEDs
    – Universal Information (UID) LED
• Expansion Slots:
  • ​ PCI-Express: 1 Micro Low Profile PCI-E 3.0 x8 slot MicroLP Adapter Matrix (Networking options)
• Drive Bays:
  • Hot-swap: 3x 3.5″ Hot-swap SATA HDD trays
• System Cooling: 4x 8cm heavy duty PWM fans with optimal fan speed control
• Power Supply: 1620W high-efficiency redundant power supply w/ PMBus
  • ​AC Input:
    – 1000W Output @ 100-120V, 12-10A, 50-60Hz
    – 1200W Output @ 120-140V, 12-10A, 50-60Hz
    – 1620W Output @ 180-240V, 10.5-8A, 50-60Hz
  • DC Output:
    – 1000W: +12V/84A; +5Vsb/4A
    – 1200W: +12V/100A; +5Vsb/4A
    - 1620W: +12V/150A; +5Vsb/4A
  • Certification: 80 PLUS Platinum Certified
• System BIOS:
  • ​BIOS Type: 128Mb SPI Flash EEPROM with AMI BIOS
  • BIOS Features:
    – Plug and Play (PnP)
    – APM 1.2
    -  PCI 2.2
    – ACPI 1.0 / 2.0
    – USB Keyboard support
    – SMBIOS 2.3
    - UEFI
• Operating Environment / Compliance:
  • RoHS: RoHS Compliant
  • Environmental Specifications:
    – Operating Temperature: 10°C to 35°C (50°F to 95°F)
    – Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
    – Operating Relative Humidity:  8% to 90% (non-condensing)
    – Non-operating Relative Humidity: 5% to 95% (non-condensing)
• Dimensions(WxHxD): 17.25″ x 3.47″ x 26.75″/ 438mm x 88mm x 679mm
• Gross Weight: 85 lbs (38.6kg)
• Color: Black
