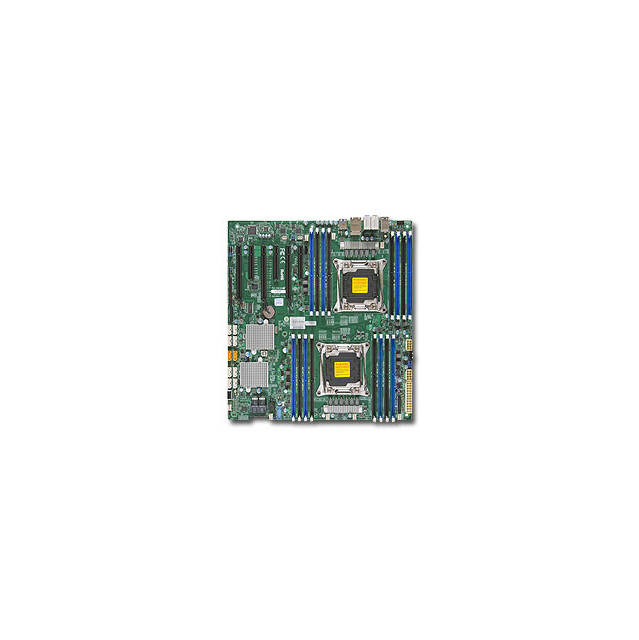

Supermicro X10DAC-B Dual LGA2011/ Intel C612/ DDR4/ SATA3&SAS3&USB3.0/ A&2GbE/ EATX Server Motherboard

Original price was: $800.31.Current price is: $617.38.

Please refer to the product’s long description below for detailed specifications, terms and conditions of the item. Should you have any questions or concerns about this product, don’t hesitate to contact support. If item is qualified for free shipping it will show at checkout.

1 in stock

Fast Shipping

Timely delivery with all orders

30 Day Return

Return accepted on selected items

24/7 Help

Help is just around the corner.

Add to compare

Add to wishlist

Ask a Question

SKU: KOAH-MBD-X10DAC-B Categories: Computer Accessories, Computer Components, Computers, Electronics

Description

Specifications

Mfr Part Number: X10DAC-B
CPU: Dual LGA2011
- Support Intel Xeon E5-2600 v3 Family Processors
- Support up to 18 Cores
- Support up to 45MB Cache
- QPI up to 9.6 GT/s
- Support up to 160W TDP
Chipset: Intel C612 Express
Memory: 16x 288pin DDR4-2133/ 1866/ 1600 DIMM Slots, Support up to 1TB ECC/Load Reduced Memory or up to 512GB ECC/REG Memory
Slots: 3x PCI-Express 3.0 x16 Slots, 2x PCI-Express 3.0 x8 Slots, 1x PCI-Express 2.0 x8 (runs at x4)
SATA: 10x SATA3 Ports, Support RAID 0, 1, 5, 10
SAS: 8x SAS3 Ports, Support RAID 0, 1, 10
Audio: Realtek ALC888 7.1-Channel High Definition Audio CODEC w/ S/PDIF Header
LAN: Intel i210 Dual-Port Gigabit Ethernet Controller
Ports: 6x USB 3.0 Ports (4 rear, 2 via header), 5x USB 2.0 Ports (2 rear, 2 via header, 1 Type A), 2x Serial Ports (1 rear, 1 via header), 2x RJ45 LAN Ports
Form Factor: EATX, 12.0 x 13.0 inch / 30.5 x 33.0 cm
RoHS Compliant
