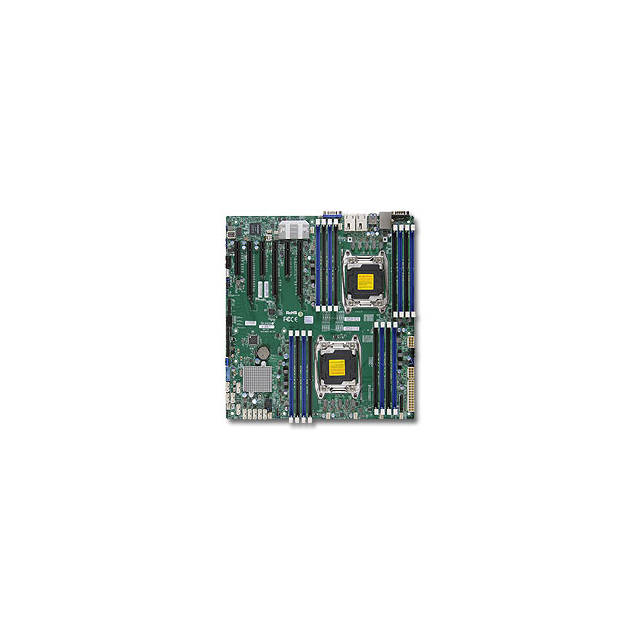

Supermicro X10DRI-T-B Dual LGA2011/ Intel C612/ DDR4/ SATA3&USB3.0/ V&2GbE/ EATX Server Motherboard

Original price was: $868.81.Current price is: $670.22.

Please refer to the product’s long description below for detailed specifications, terms and conditions of the item. Should you have any questions or concerns about this product, don’t hesitate to contact support. If item is qualified for free shipping it will show at checkout.

10 in stock

Fast Shipping

Timely delivery with all orders

30 Day Return

Return accepted on selected items

24/7 Help

Help is just around the corner.

Add to compare

Add to wishlist

Ask a Question

SKU: KOAH-MBD-X10DRI-T-B Categories: Computer Accessories, Computer Components, Computers, Electronics

Description

Specifications

Mfr Part Number: X10DRI-T-B
CPU: Dual LGA2011
- Support Intel Xeon E5-2600 v4/v3 Family Processors
- Support up to 22 Cores
- Support up to 55MB Cache
- QPI up to 9.6 GT/s
- Support up to 145W TDP
Chipset: Intel C612
Memory: 16x 288pin DDR4-2400/ 2133/ 1866/ 1600 MHz DIMM Slots, Support up to 2TB ECC 3DS Load Reduced Memory or up to 1TB ECC/REG Memory
Slots: 3x PCI-Express 3.0 x16 Slots, 3x PCI-Express 3.0 x8 Slots
SATA: 10x SATA3 Ports, Support RAID 0, 1, 5, 10
Video: Aspeed AST2400 BMC Graphics
LAN: Intel X540 Dual Port 10GBase-T Gigabit Ethernet Controllers
Ports: 5x USB 3.0 Ports (2 rear, 2 via header, 1 Type A), 6x USB 2.0 Ports (2 rear, 4 via headers), 1x VGA Port, 4x Serial Ports (1 rear, 1 via header, 2 Fast UART 16550), 2x RJ45 10GBase-T LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
Form Factor: EATX, 12.0 x 13.0 inch / 30.5 x 33.0 cm
RoHS Compliant
