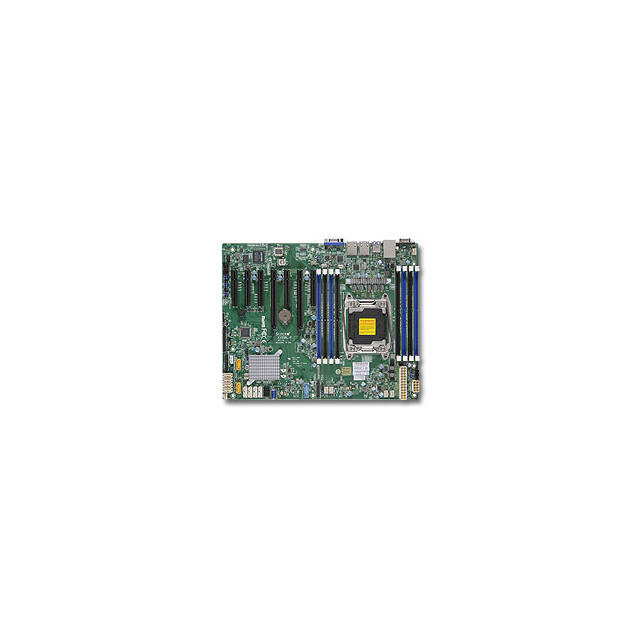

Supermicro X10SRL-F-B LGA2011/ Intel C612/ DDR4/ SATA3&USB3.0/ V&2GbE/ ATX Server Motherboard

Original price was: $441.61.Current price is: $340.67.

Please refer to the product’s long description below for detailed specifications, terms and conditions of the item. Should you have any questions or concerns about this product, don’t hesitate to contact support. If item is qualified for free shipping it will show at checkout.

3 in stock

Fast Shipping

Timely delivery with all orders

30 Day Return

Return accepted on selected items

24/7 Help

Help is just around the corner.

Add to compare

Add to wishlist

Ask a Question

SKU: KOAH-MBD-X10SRL-F-B Categories: Computer Accessories, Computer Components, Computers, Electronics

Description

Specifications

Mfr Part Number: X10SRL-F-B
CPU: LGA2011
- Supports Intel Xeon E5-2600/1600 v3 Processors
- Supports up to 18 Cores
- Supports up to 45MB Cache
- Supports up to 145W TDP
Chipset: Intel C612 Express
Memory: 8x 284pin DDR4-2133/ 1866/ 1600/ 1333 DIMM Slots, Supports up to 512GB ECC Load Reduced Memory or up to 256GB ECC/REG Memory
Slots: 2x PCI-Express 3.0 x16 Slot (run at x8), 4x PCI-Express 3.0 x8 Slots (two run at x4), 1x PCI-Express 2.0 x8 Slot (runs at x4)
SATA: 10x SATA3 Ports, Support RAID 0, 1, 10
Video: Integrated ASPEED AST2400 BMC Graphics
LAN: Intel i210 Dual Port Gigabit Ethernet Controller
Ports: 4x USB 3.0 Ports (2 rear, 1 via header, 1 Type A), 8x USB 2.0 Ports (2 rear, 6 via headers), 1x VGA Port, 2x Serial Ports (1 rear, 1 via header), 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
Form Factor: ATX, 12.0 x 9.6 inch / 30.5 x 24.4 cm
RoHS Compliant
