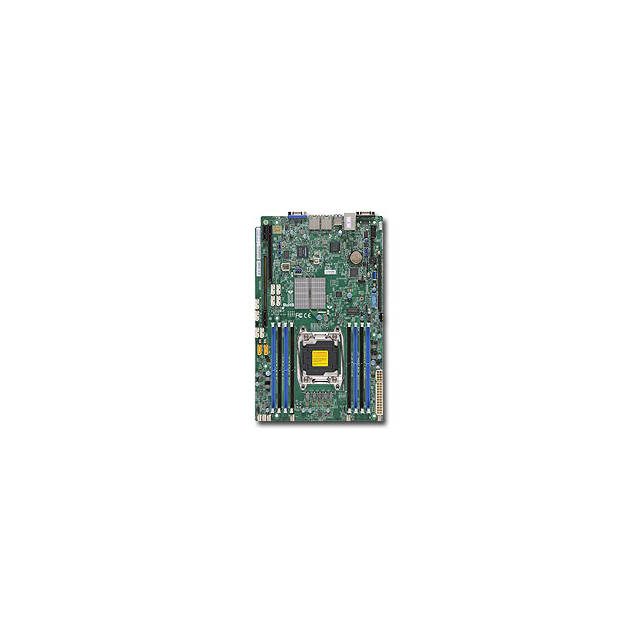

Supermicro X10SRW-F-B LGA2011/ Intel C612/ DDR4/ SATA3&USB3.0/ V&2GbE/ Proprietary Server Motherboard

Original price was: $504.70.Current price is: $389.34.

Please refer to the product’s long description below for detailed specifications, terms and conditions of the item. Should you have any questions or concerns about this product, don’t hesitate to contact support. If item is qualified for free shipping it will show at checkout.

7 in stock

Fast Shipping

Timely delivery with all orders

30 Day Return

Return accepted on selected items

24/7 Help

Help is just around the corner.

Add to compare

Add to wishlist

Ask a Question

SKU: KOAH-MBD-X10SRW-F-B Categories: Computer Accessories, Computer Components, Computers, Electronics

Description

Specifications

Mfr Part Number: X10SRW-F-B
CPU: LGA2011
- Support Intel Xeon E5-2600/1600 v3 Family Processors
- Support up to 145W TDP
- Support up to 18 Cores
- Support up to 45MB Cache
Chipset: Intel C612 Express
Memory: 8x 284pin DDR4-2133/ 1866/ 1600/ 1333MHz DIMM Slots, Support up to 512GB ECC/Load Reduced Memory or up to 256GB ECC/REG Memory
Slots: 1x PCI-Express 3.0 x16 Slot (runs at x8 ), 1x PCI-Express 3.0 x32 Slot (Left Riser)
SATA: 10x SATA3 Ports, Support RAID 0, 1, 10
Video: Integrated Aspeed AST2400 BMC Graphics
LAN: Intel i350-AM2 Dual-Port Gigabit Ethernet Controller
Ports: 4x USB 3.0 Ports (2 rear, 1 via header, 1 Type A), 8x USB 2.0 Ports (2 rear, 6 via headers), 1x eUSB header, 1x VGA Port, 2x Serial Ports (1 rear, 1 via header), 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
Form Factor: Proprietary, 8.15 x 13.05 inch / 20.70 x 33.15 cm
RoHS Compliant
