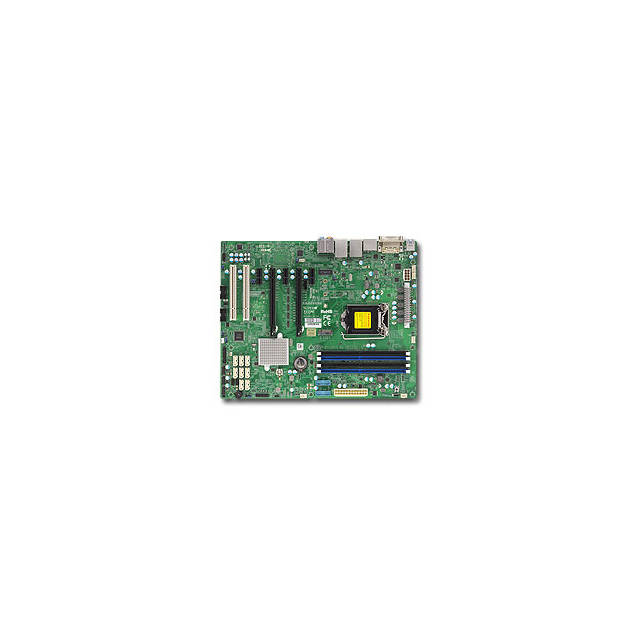

Supermicro X11SAE-B LGA1151/ Intel C236/ DDR4/ SATA3&USB3.1/ A&2GbE/ ATX Motherboard

Original price was: $369.51.Current price is: $285.05.

Please refer to the product’s long description below for detailed specifications, terms and conditions of the item. Should you have any questions or concerns about this product, don’t hesitate to contact support. If item is qualified for free shipping it will show at checkout.

21 in stock

Fast Shipping

Timely delivery with all orders

30 Day Return

Return accepted on selected items

24/7 Help

Help is just around the corner.

Add to compare

Add to wishlist

Ask a Question

SKU: KOAH-MBD-X11SAE-B Categories: Computer Accessories, Computer Components, Computers, Electronics

Description

Specifications

Mfr Part Number: X11SAE-B
CPU: LGA1151
- Supports Intel Xeon E3-1200 v5 Processor
- Supports 6th Generation Intel Core i7/ i5/ i3/ Pentium/ Celeron Processors
- Support up to 95W TDP
Chipset: Intel C236
Memory: 4x 288pin DDR4-2133/ 1866/ 1600 DIMM Slots, ECC, Unbuffered, Max Capacity of 64GB
Slots: 2x PCI-Express 3.0 x16 Slots (run at 16/NA or 8/8), 3x PCI-Express 3.0 x1 Slots, 2x PCI Slots (5V, 32bit)
SATA: 8x SATA3 Ports, Support RAID 0, 1, 5, 10
Audio: Realtek ALC888S High Definition Audio CODEC
LAN: Intel I210-AT + Intel PHY I219LM Gigabit Ethernet Controllers
Ports: 2x USB 3.1 Ports, 6x USB 3.0 Ports (2 rear, 4 via headers), 8x USB 2.0 Ports (2 rear, 6 via headers), 1x DisplayPort, 1x DVI-D Port, 1x HDMI Port, 2x RJ45 LAN Ports
Form Factor: ATX, 12.0 x 9.6 inch / 30.5 x 22.4 cm
