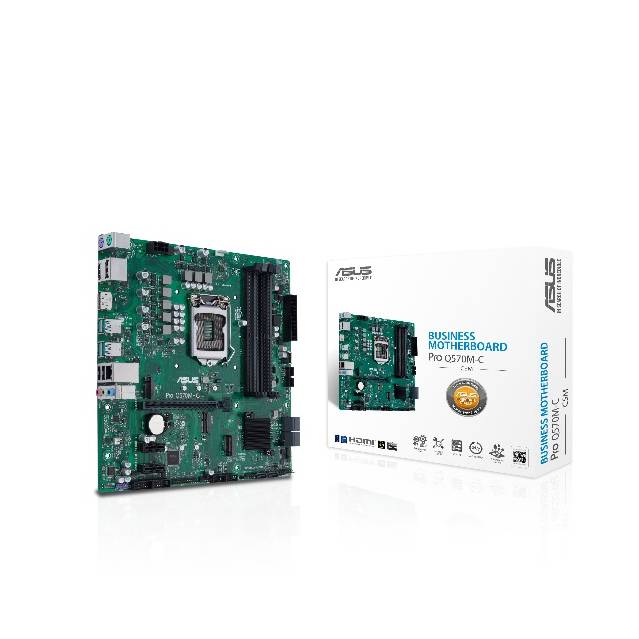

Asus PRO Q570M-C/CSM Socket LGA1200/ Intel Q570/ DDR4/ SATA3&USB3.2/ WiFi & Bluetooth/ M.2/ mATX Motherboard

Specifications

• Mfr Part Number: PRO Q570M-C/CSM
• CPU:
  • Intel Socket LGA1200 for 11th Gen Intel Core processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors
  • Supports Intel 14 nm CPU
  • Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
• Chipset: Intel Q570 Chipset
• Memory:
  • 4 x DIMM, Max. 128GB, DDR4 3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
  • Dual Channel Memory Architecture
  • Supports Intel Extreme Memory Profile (XMP)
  • Optimem
• Graphics:
  • 2 x DisplayPort 1.4
  • 1 x HDMI 2.0
• Expansion Slots:
  • Intel 11th & 10th Gen Processors
  • 1 x PCIe 4.0/3.0 x16 slot
    – Intel 11th processors support PCIe 4.0 x16 mode
    – Intel 10th processors support PCIe 3.0 x16 mode
  • Intel Q570 Chipset
  • 2 x PCIe 3.0 x1 slots
• Storage:
  • Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
  • Intel 11th & 10th Gen Processors
  • M.2_1 slot (Key M), type 2242/2260/2280
    – Only Intel 11th Core processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs
  • Intel Q570 Chipset
  • M.2_2 slot (Key M), type 2242/2260/2280(supports PCIe 3.0 x4 & SATA modes)
  • 6 x SATA 6Gb/s ports
• Ethernet: 1 x Intel I219-LM 1Gb Ethernet, ASUS LANGuard
• Wireless & Bluetooth: M.2 slot only (Key E, CNVi & PCIe), Wi-Fi module is sold separately
• USB Ports:
  • Rear USB: Total 6 ports
    – 4 x USB 3.2 Gen 2 ports (4 x Type-A)

    – 2 x USB 2.0 ports (2 x Type-A)
  • Front USB: Total 7 ports
    – 1 x USB 3.2 Gen 1 front panel connector (suppports USB Type-C)

    – 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

    – 2 x USB 2.0 headers support additional 4 USB 2.0 ports
• Audio:
  • Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC
    – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
    – Supports up to 24-Bit/192 kHz playback
• Back Panel I/O Ports: ​
  • 4 x USB 3.2 Gen 2 ports (4 x Type-A)
  • 2x USB 2.0 ports (2 x Type-A)
  • 2 x DisplayPort
  • 1 x HDMI
  • 3 x Audio jacks
  • 1 x Intel I219-LM 1Gb Ethernet
  • 1 x PS/2 keyboard (purple) port
  • 1 x PS/2 mouse (green) port
• Internal I/O Ports:
  • Fan and Cooling related
    – 1 x 4-pin CPU Fan header
    – 2 x 4-pin Chassis Fan headers
  • Power related
    – 1 x 24-pin Main Power connector

    – 1 x 8-pin +12V Power connector
  • Storage related
    – 2 x M.2 slots (Key M)

    – 6 x SATA 6Gb/s ports
  • USB
    – 1 x USB 3.2 Gen 1 Front Panel connector (suppports USB Type-C)

    – 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

    – 2 x USB 2.0 headers support additional 4 USB 2.0 ports
  • Miscellaneous
    – 1 x Clear CMOS header

    – 1 x Chassis Intrude header

    – 2 x COM Port headers

    – 1 x Front Panel Audio header (AAFP)

    – 1 x COM debug header

    – 1 x DIS ME jumper

    – 1 x LPT header

    – 1 x Mono-out header(with Amp IC)

    – 1 x M.2 slot (Key E)

    – 1 x SMBUS header

    – 1 x Speaker header

    – 1 x 10-1 System Panel header
• ASUS Special Features:
  • ASUS EZ DIY
    – Box Headers
  • Bespoke Motherboard Design & Business Focused Features
    – ASUS Self Recovering BIOS
    – ASUS Event Log
    – ASUS Commercial BIOS kit
    – Anti-Moisture
    – 24/7 Reliability
    – Overcurrent Protection
  • TPM 2.0 IC onboard
• Software Features:
  • ASUS Exclusive Software
  • IT Management software supported
    – ASUS Control Center Express(ACCE)​
• BIOS: 128+64 Mb Flash ROM
• Manageability: WOL by PME, PXE
• Accessories:
  • Cables
    – 2 x SATA 6Gb/s cables
  • Miscellaneous
    – 1 x I/O Shield
    – 1 x M.2 SSD screw package
    – 1 x M.2 Key E screw package
  • Installation Media
    – 1 x Support DVD
  • Documentation
    - 1 x ACC Express Activation Key Card
    – 1 x User manual
• Operating System: Windows 10 64-bit
• Form Factor:
  • mATX Form Factor
  • 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
