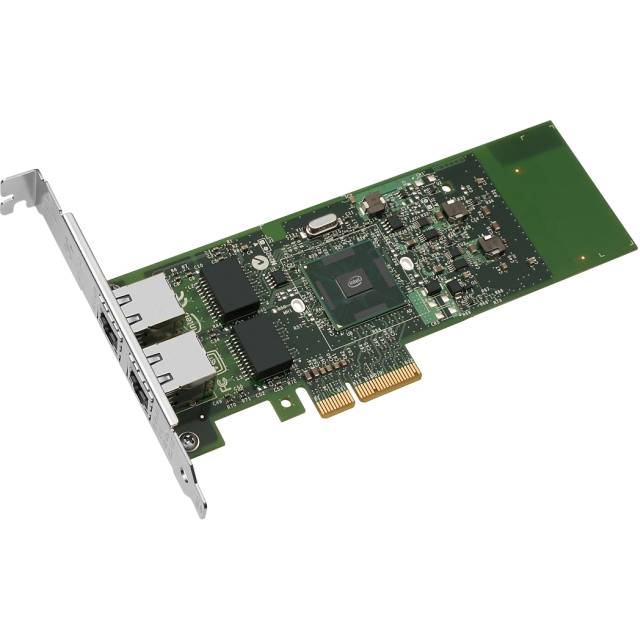

Intel E1G42ETBLK Gigabit ET Dual Port PCI-Express Server Adapter, Bulk

Specifications

• Mfr Part Number: E1G42ETBLK
• Features:
• Intel 82576 Gigabit Ethernet Controller
• Low-profile
• iSCSI remote boot support
• Load balancing on multiple CPUs
• Compatible with x4, x8, and x16 standard and low-profile PCI Express slots
• Multi-port design
• Support for most network operating systems (NOS)
• RoHS-compliant
• Intel PROSet Utility for Windows Device Manager
• Intel QuickData Technology
• MSI-X support
• Low Latency Interrupts
• Header splits and replication in receive
• Multiple queues: 8 queues per port
• Tx/Rx IP, SCTP, TCP, and UDP checksum offloading (IPv4, IPv6) capabilities
• Tx TCP segmentation offload (IPv4, IPv6)
• Receive and Transmit Side Scaling for Windows environment and Scalable I/O for Linux environments (IPv4, IPv6, TCP/UDP)
• IPsec Offload
• LinkSec
• Virtual Machine Device queues (VMDq)
• Next-generation VMDq
• PC-SIG SR-IOV implementation (eight virtual functions per port)
• IPv6 offloading
• Advanced packet filtering
• VLAN support with VLAN tag insertion, stripping and packet filtering for up to 4096 VLAN tags
• On-board microcontroller
• Advanced filtering capabilities
• Preboot eXecution Environment (PXE) Support
• Simple Network Management Protocol (SNMP) and Remote Network Monitoring (RMON) Statistic Counters
• Wake-on-LAN support
• iSCSI boot
• Watchdog timer
• IEEE 1588 precision time control protocol
• Intel Backing
• Hardware:
• Connectors: RJ45
• IEEE Standards/Network Topology: 10BASE-T, 100BASE-T,1000BASE-T
• Cabling: Category-5, unshielded twisted pair (UTP); Shielded Cable is required for EMI compliance
• Data Rate Supported per Port: 10/100/1000
• Bus Type: PCI Express 2.0 (2.5 GT/s)
• Bus Width: 4-lane PCI Express, operable in x4, x8 and x16 slots
• Interrupt Levels: INTA, MSI, MSI-X
• Hardware Certifications: FCC B, UL, CE, VCCI, BSMI, CTICK, MIC
• Controller Processor: Intel 82576
• Typical Power Consumption: 2.9W
• LED Indicators: LINK (solid) and ACTIVITY (blinking)
• Advanced Software Support:
• Adapter fault tolerance (AFT)
• Switch fault tolerance (SFT)
• Adaptive load balancing (ALB)
• Teaming support
• IEEE 802.3ad (link aggregation control protocol)
• Test switch configuration: Tested with major switch original equipment manufacturers (OEMs)
• PCIe Hot Plug/Active peripheral component interconnect (PCI)
• IEEE 802.1Q VLANs
• IEEE 1588 Precision Time Control Protocol: Time synch capability �C synchronizes internal clocks according to a network master clock
• IEEE 802.3 2005* flow control support
• Tx/Rx IP, TCP, and UDP checksum offloading (IPv4, IPv6) capabilities (Transmission control protocol (TCP), user datagram protocol (UDP), Internet protocol (IP))
• IEEE 802.1p
• TCP segmentation/large send offload
• MSI-X supports Multiple Independent Queues
• Interrupt moderation
• IPv6 offloading: Checksum and segmentation capability extended to new standard packet type
• Dimension(WxLxH): 2.681 x 6.59 x 4.725 inch / 6.81 x 16.74 x 12.00 cm (standard)
